設計規(guī)范 Design Spec |
結(jié)構(gòu)長度 Face To Face |
法蘭尺寸 Flange Dimension |
試驗-檢驗 Test and Check |
壓力-溫度 Presure-Temp. |
|---|---|---|---|---|
| GB12237 | GB12221 | GB9113 JB79 | GB9131 | GB/T13927 JB/T 9091 |
|
公稱壓力 Nominal Pressore |
強度試驗 Shell Test |
水密封試驗 Water Seal Test |
氣密封試驗 Air Seal Test |
|---|---|---|---|
| 1.6 | 2.4 | 1.8 | 0.4-0.7 |
| 2.5 | 3.8 | 2.8 | |
| 4.0 | 6.0 | 4.4 |
| 1.6MPa | DN | L | D | D1 | D2 | b | N-d | H | D0 |
|---|---|---|---|---|---|---|---|---|---|

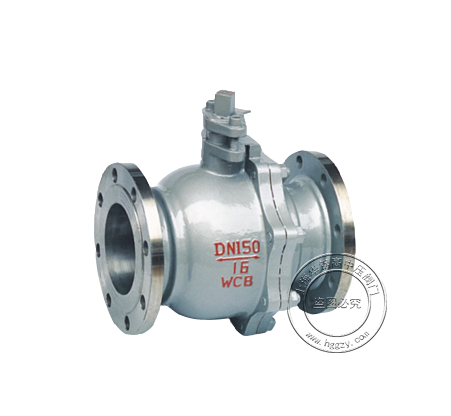

| 凸面法蘭 RF Q41F Q41PPL 16C 16P 16R |
15 | 130 | 95 | 65 | 45 | 14 | 4-14 | 78 | 140 |
| 20 | 140 | 105 | 75 | 55 | 14 | 4-14 | 84 | 160 | |
| 25 | 150 | 115 | 85 | 65 | 14 | 4-14 | 95 | 180 | |
| 32 | 165 | 135 | 100 | 78 | 16 | 4-18 | 150 | 250 | |
| 40 | 180 | 145 | 110 | 85 | 16 | 4-18 | 150 | 300 | |
| 50 | 200 | 160 | 125 | 100 | 16 | 4-18 | 170 | 350 | |
| 65 | 220 | 180 | 145 | 120 | 18 | 4-18 | 195 | 350 | |
| 80 | 250 | 195 | 160 | 135 | 20 | 8-18 | 215 | 400 | |
| 100 | 280 | 215 | 180 | 155 | 20 | 8-18 | 250 | 500 | |
| 125 | 320 | 245 | 210 | 185 | 22 | 8-18 | 265 | 600 | |
| 150 | 360 | 280 | 240 | 210 | 24 | 8-23 | 270 | 800 | |
| 200 | 400 | 335 | 295 | 265 | 26 | 12-23 | 330 | 1200 | |
| 2.5MPa | 15 | 130 | 95 | 65 | 45 | 16 | 4-14 | 103 | 140 |
凸面法蘭 RF Q41F Q41PPL 25 25P 25R |
20 | 140 | 105 | 75 | 55 | 16 | 4-14 | 112 | 160 |
| 25 | 150 | 115 | 85 | 65 | 16 | 4-14 | 123 | 180 | |
| 32 | 165 | 135 | 100 | 78 | 18 | 4-18 | 150 | 250 | |
| 40 | 180 | 145 | 110 | 85 | 18 | 4-18 | 156 | 300 | |
| 50 | 200 | 160 | 125 | 100 | 20 | 4-18 | 172 | 350 | |
| 65 | 220 | 180 | 145 | 120 | 22 | 8-18 | 197 | 350 | |
| 80 | 250 | 195 | 160 | 135 | 22 | 8-18 | 222 | 400 | |
| 100 | 280 | 230 | 190 | 160 | 24 | 8-23 | 253 | 500 | |
| 125 | 320 | 270 | 220 | 188 | 28 | 8-25 | 275 | 600 | |
| 150 | 360 | 300 | 250 | 218 | 30 | 8-25 | 286 | 800 | |
| 200 | 400 | 360 | 310 | 278 | 34 | 12-25 | 340 | 1200 |
